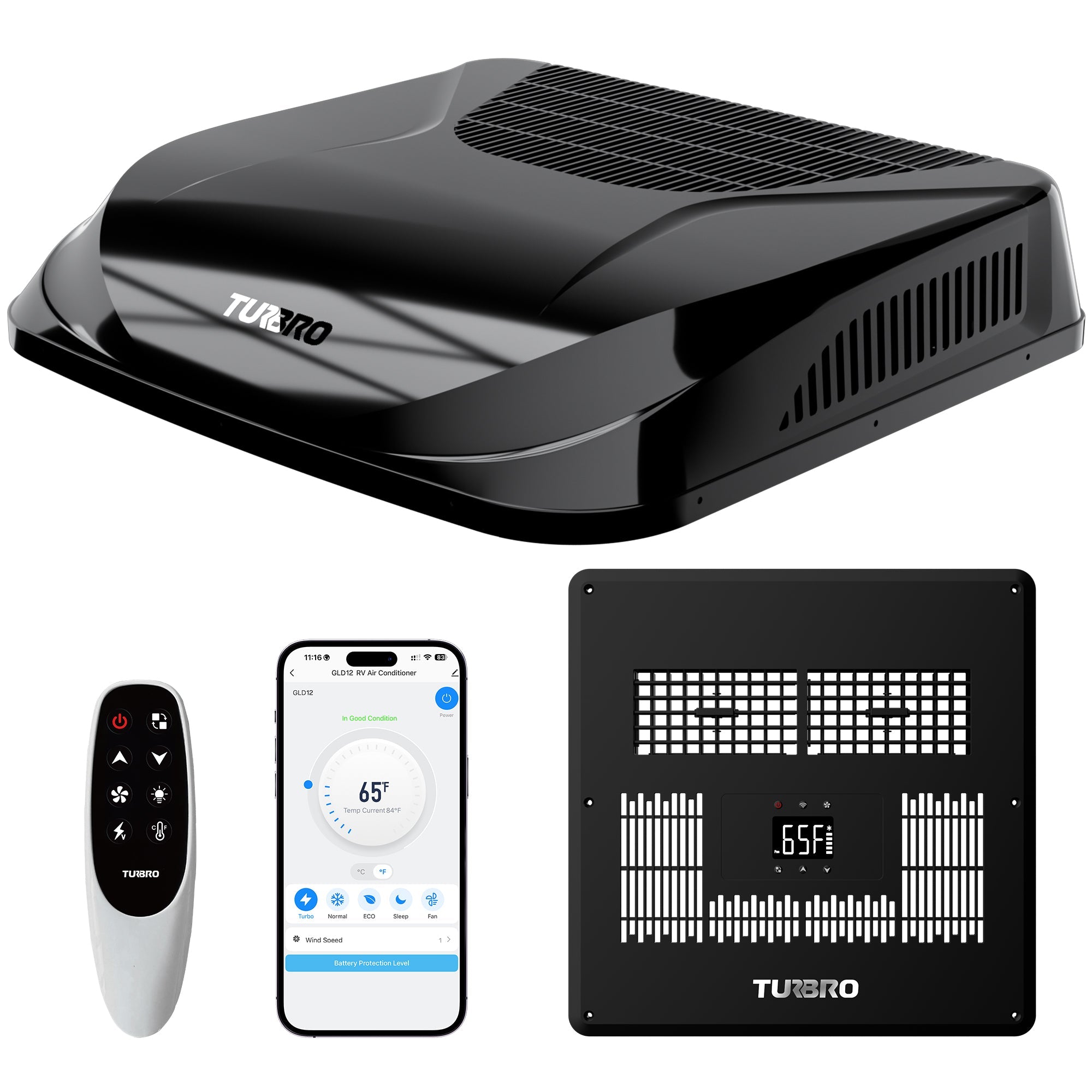

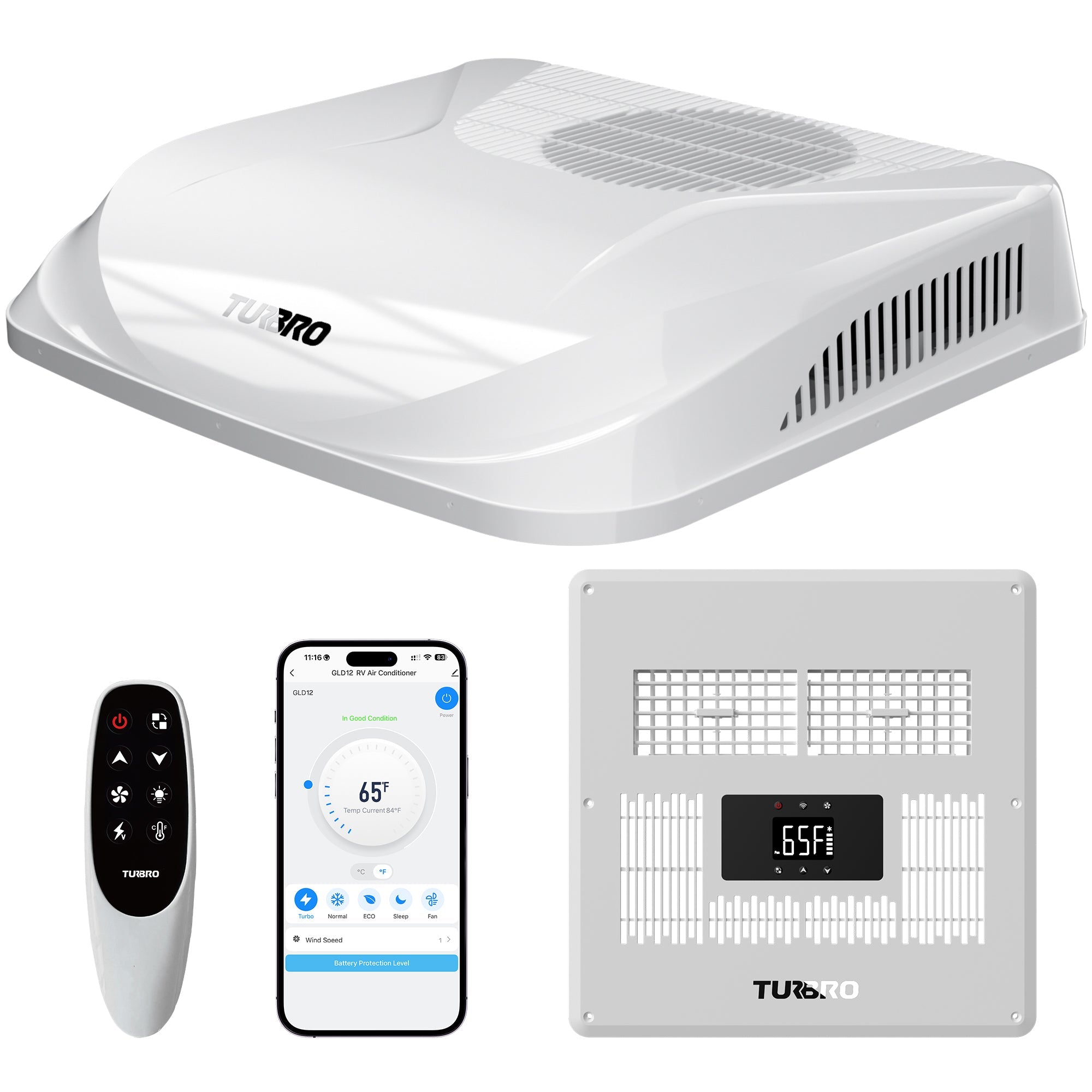

Greenland 12,000 BTU 12V DC Inverter Rooftop RV Air Conditioner

Specification

• Power Supply: 12 V DC
• Inverter Compressor: Yes
• Cooling: 4,500-12,000 BTU
• Heating: Electric Heating (600 W)
• Rated Power of Cooling: 180-600 W
• Rated Current of Cooling: 50 A
• Ambient Temp.: 61-131℉
• Color: White/Black
• Min. Circuit Ampacity: 60 A
• Max. Circuit Protection: 100 A
• Refrigerant: R32

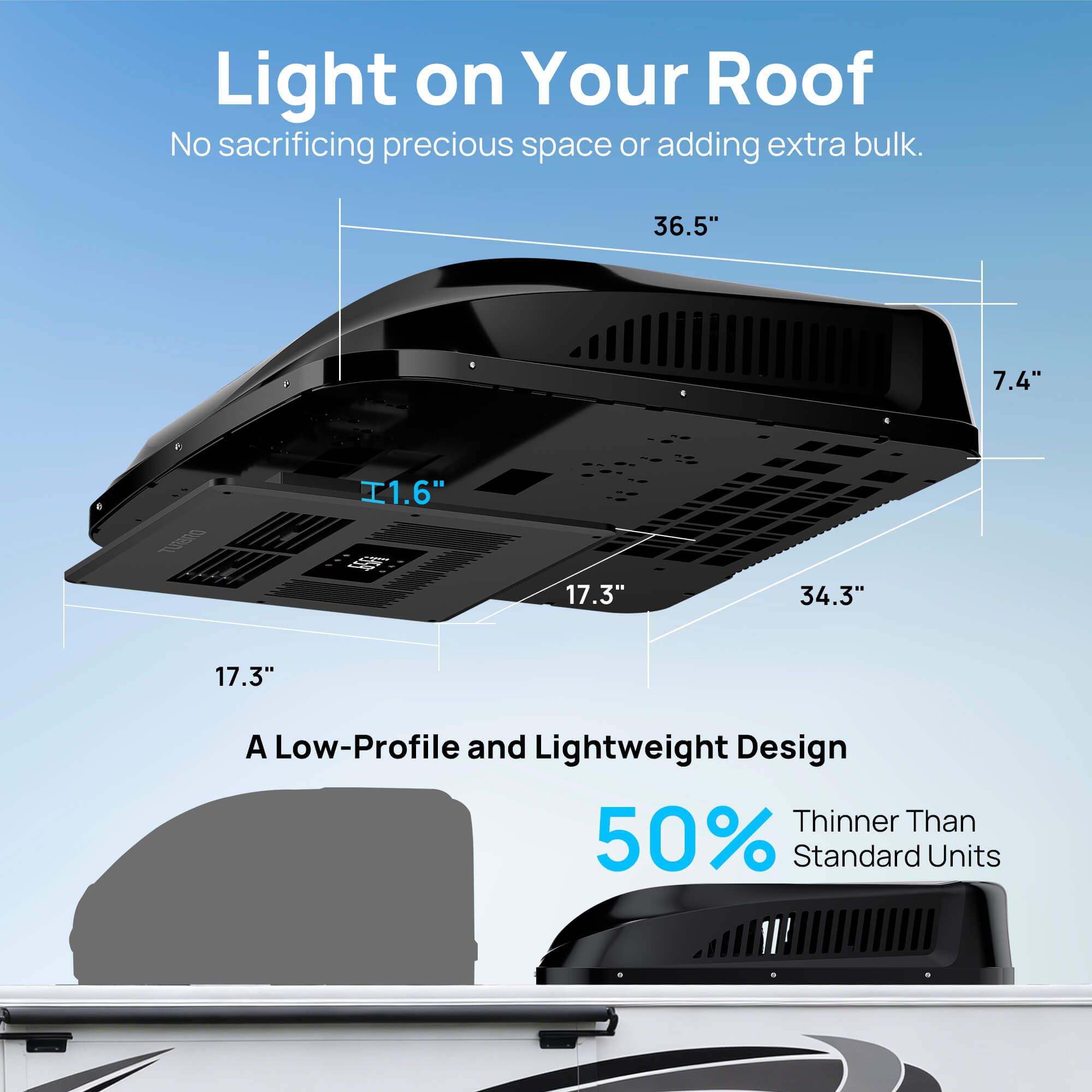

• Rooftop Unit Dimensions: 34.3”(W) x 36.5”(D) x 7.4”(H)
• Rooftop Unit Weight: 61.2 lb
• Indoor Unit Dimensions: 17.3”(W) x 17.3”(D) x 1.6”(H)
• Indoor Unit Weight: 2.0 lb

FAQ

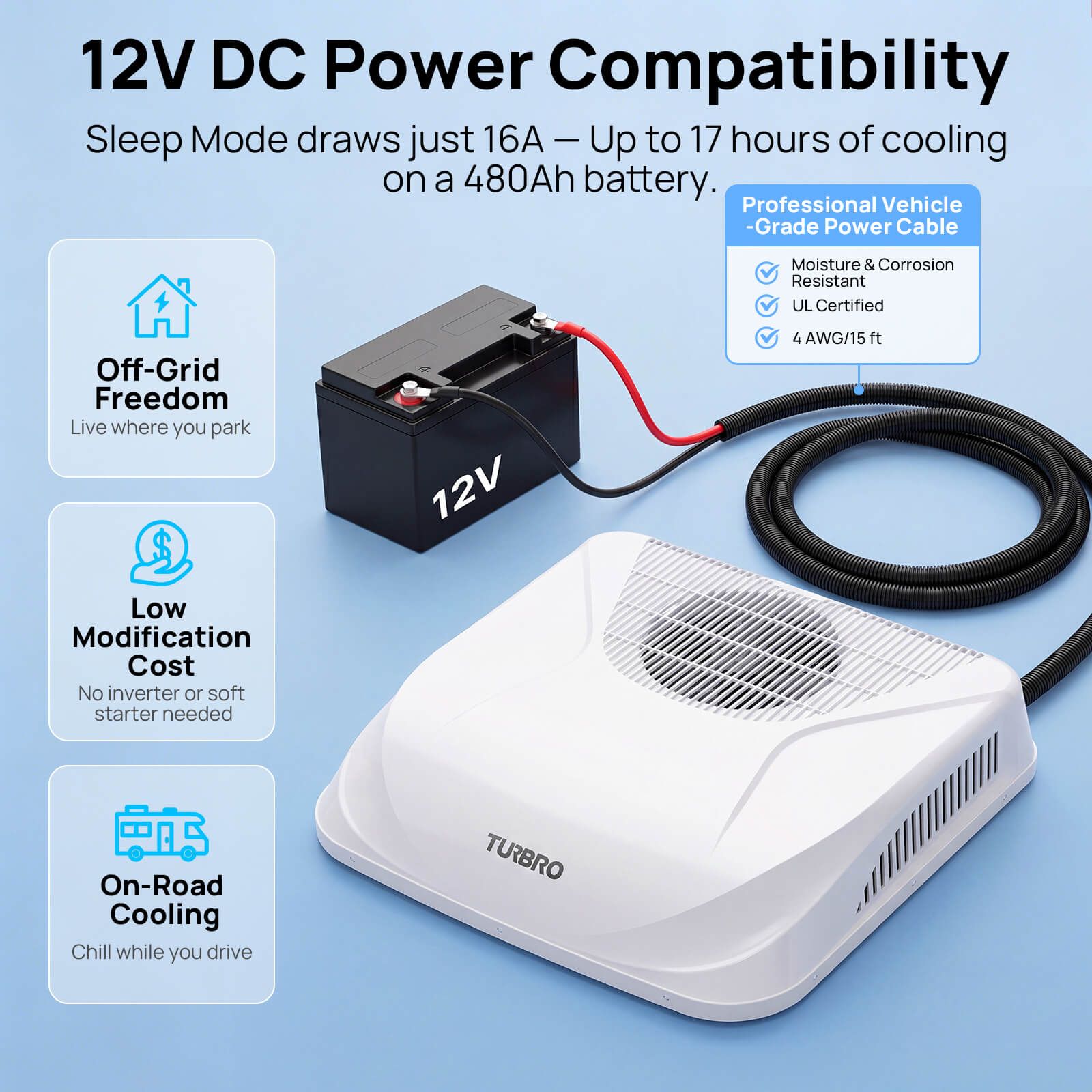

Q: Can I run this AC while driving my RV?
A: Yes. Since it runs directly on 12V DC power, you can keep it running during transit without an inverter, provided your battery system has sufficient capacity and charging support.

Q: How much battery capacity do I need?
A: We recommend a 300 Ah or larger battery bank. With a 480 Ah battery, our energy-efficient inverter system provides approximately 8 to 10 hours of operation. In ECO or Sleep mode, the system intelligently adjusts compressor speed for longer operation.

Q: Will it fit my RV?

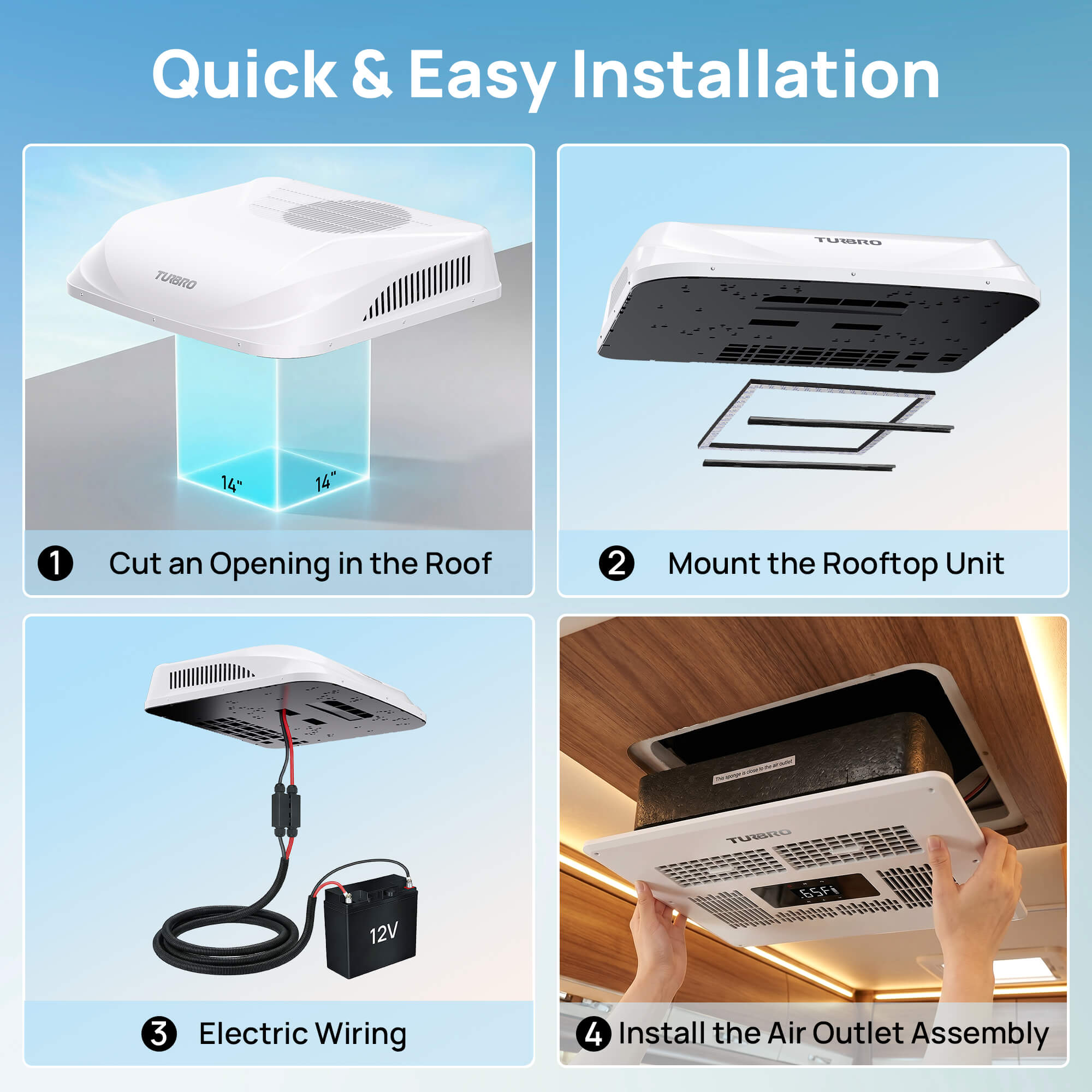

A: The Greenland 12V RV AC is designed for versatile fitment such as Class B vans, truck campers, and mini trailers. Model GLD09 needs 12-14" x 14" rooftop openings, while GLD12 needs standard 14" x 14" openings.

Q: How quiet is the unit?

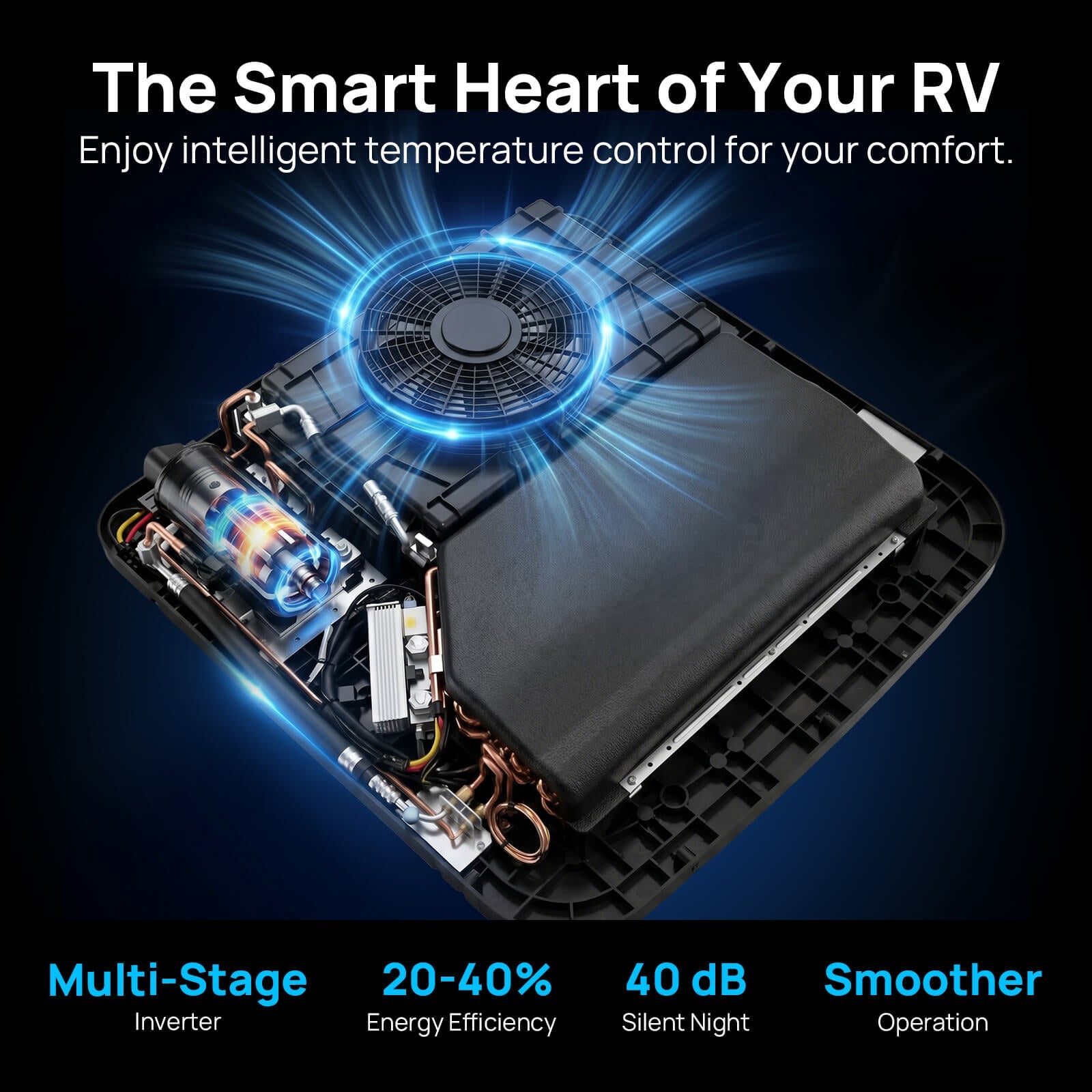

A: By combining a twin rotary inverter compressor with a dual vibration-dampening structure, this unit operates as quietly as 40 dB in sleep mode for restful nights.

Q: Do I need ductwork?

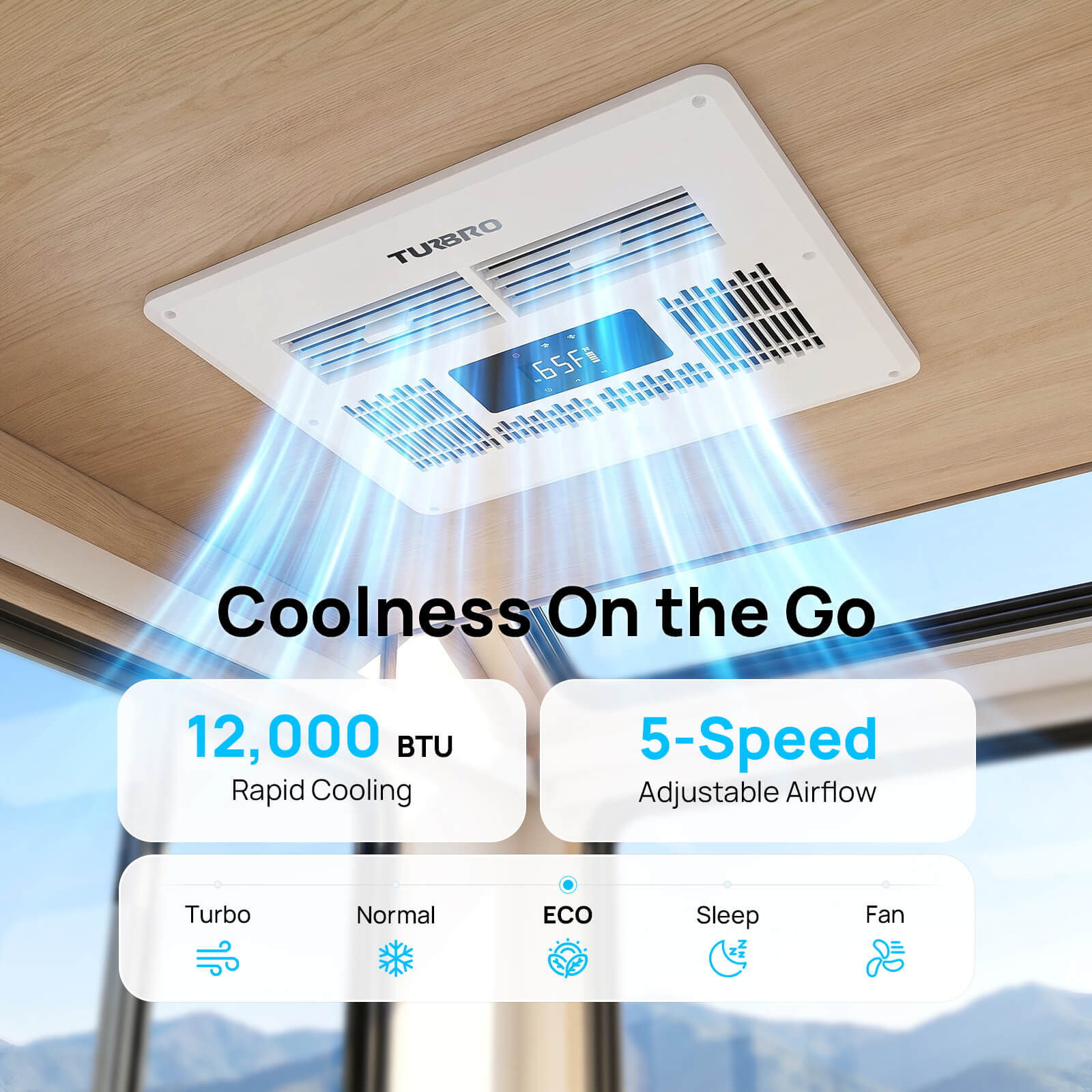

A: No ducting is required. This is a non-ducted rooftop unit that blows air directly from the indoor unit. This simplified design ensures maximum airflow efficiency and a much easier installation for setups.

Q: Can I run the wiring externally for my truck?
A: Yes, the casing includes pre-drilled ports for external routing. This requires opening the shell to adjust cables. We recommend professional installation or consulting our support for guidance.
