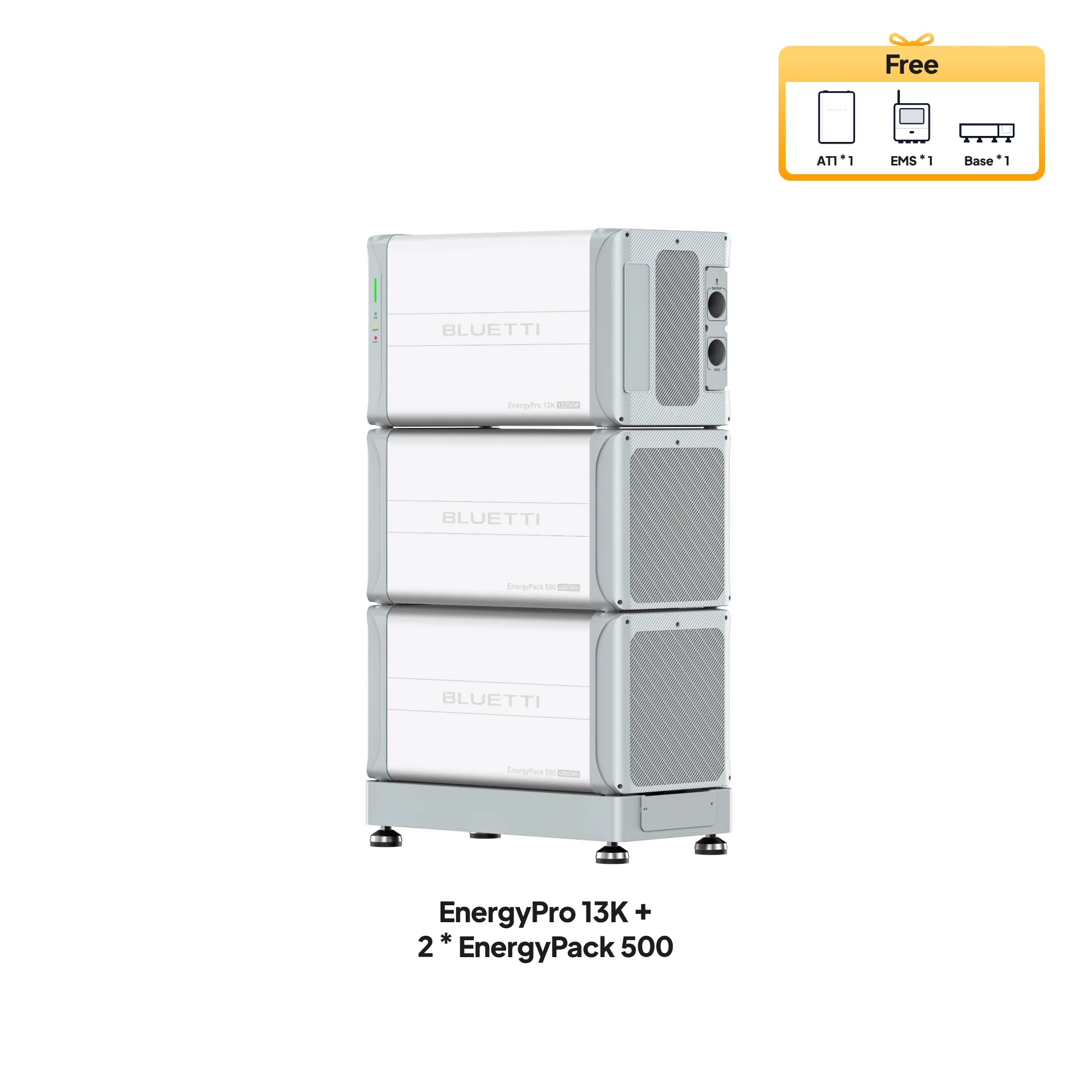

EnergyPro 13K + 2 × Energy Pack 500_Kit

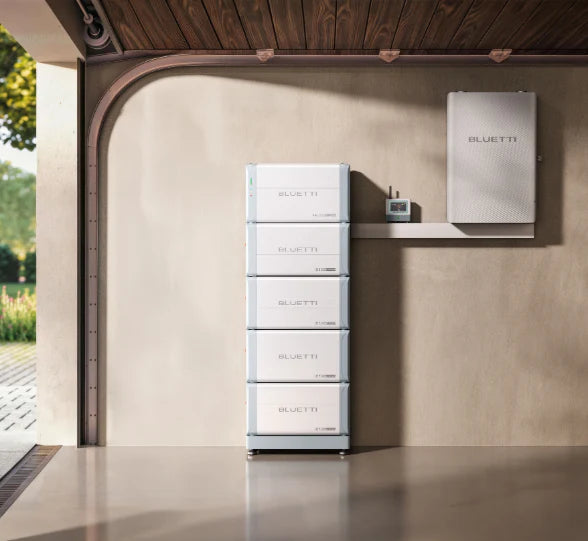

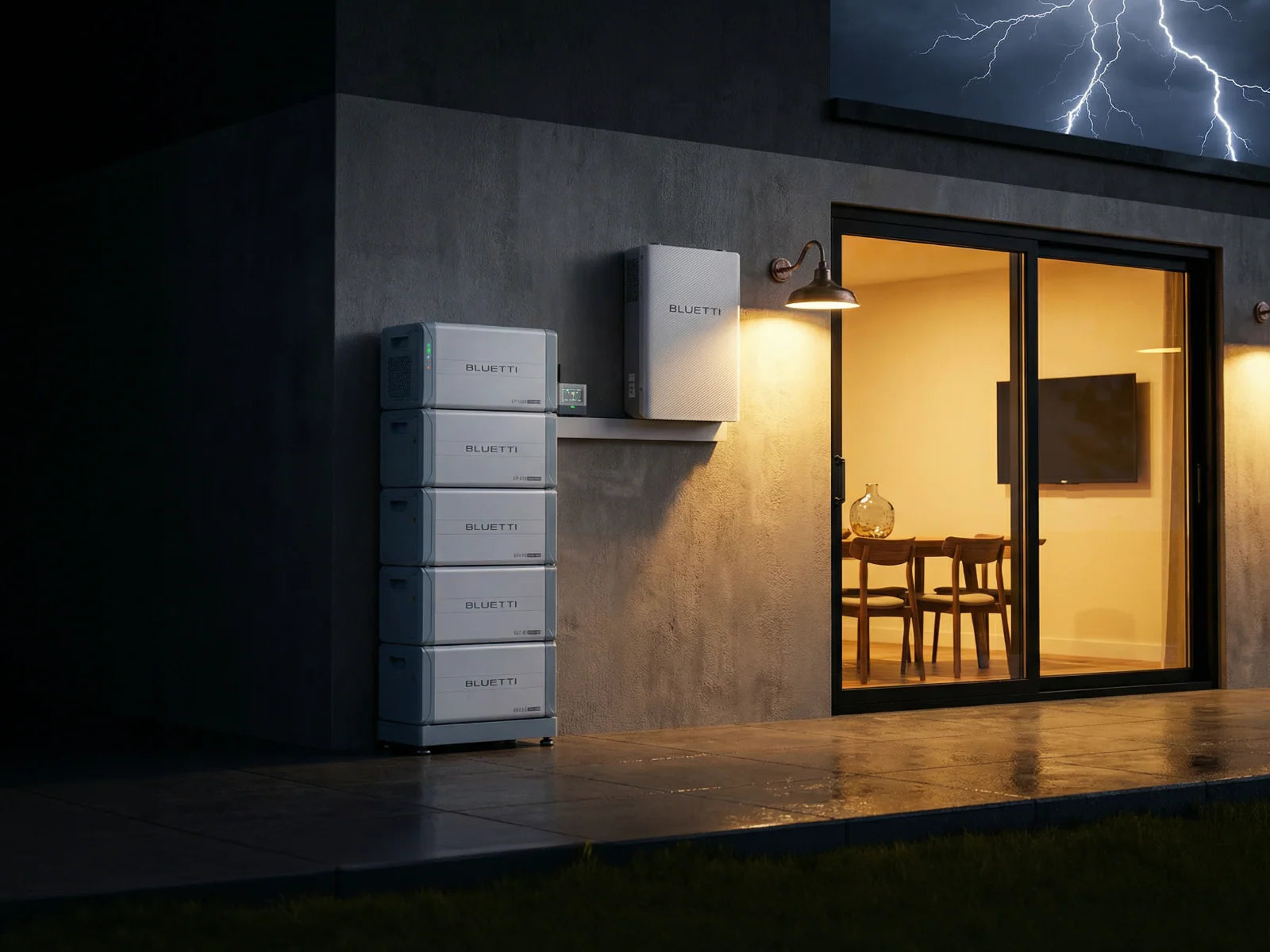

The BLUETTI EnergyPro13K is a complete Whole-Home ESS that streamlines your home energy management and storage. It has three parts: the EnergyPro 13K hybrid inverter, EnergyPack 500 battery pack, and the AT1 Smart Distribution Panel. It lets you prepare for power outages, optimize energy usage, and maximize solar savings—all in one go.

Specifications

Energy Solutions	EnergyPro 13K + 2 × EnergyPack 500	EnergyPro 13K + 3 × EnergyPack 500	EnergyPro 13K + 4 × EnergyPack 500
Max. Solar Input (kW)	22
Load Start Capability (A)	150
Max. Output with Solar (kW)	13.2
Max. Output without Solar (kW)	7.6	11.5	13.2
Number of Battery	2	3	4
Rated Capacity (kWh)	9.6	14.4	19.2
Dimensions	25.0 × 12.8 × 41.2 in	25.0 × 12.8 × 54.5 in	25.0 × 12.8 × 67.8 in

EnergyPro 13K Hybrid Inverter

General

Operating Temperature

-4℉ to 131℉

Noise

≤50 dB (A)

Net Weight

105 lbs (48 kg)

Cooling

Forced Air Cooling

Connectivity

USB/Wi-Fi/Bluetooth

Protection Grade

NEMA 4X

Warranty

10 Years

Dimensions

25.0 × 12.8 × 14.6 in

Rated Frequency

60 Hz

UPS Time

＜20 ms

Split Phase

L1/L2/N/G

Max. Continuous Input Current

155 A

PV INPUT (DC-Coupled)

Max. Power

22 kW

MPPT Voltage Range

100 V–480 V/350 V

MPPT Channel

4

Single MPPT Input Current

15 A Max.

Single MPPT Short Circuit Current

18 A Max.

AC OUTPUT (Backup)

Rated Power

13.2 kW

Continuous Current

55 A × 2

Load Start Capability

150 LRA

Rated Voltage

120 V/240 V

Frequency

60 Hz

Specifications are not final and subject to change without notice.

EnergyPack 500 Battery Pack

General

Battery Chemistry

LiFePO₄

Capacity

4.8 kWh

DOD

95%

Net Weight

127.8 lbs

Protection Grade

NEMA 4X

Dimensions

25.0 × 12.8 × 13.3 in

Specifications are not final and subject to change without notice.

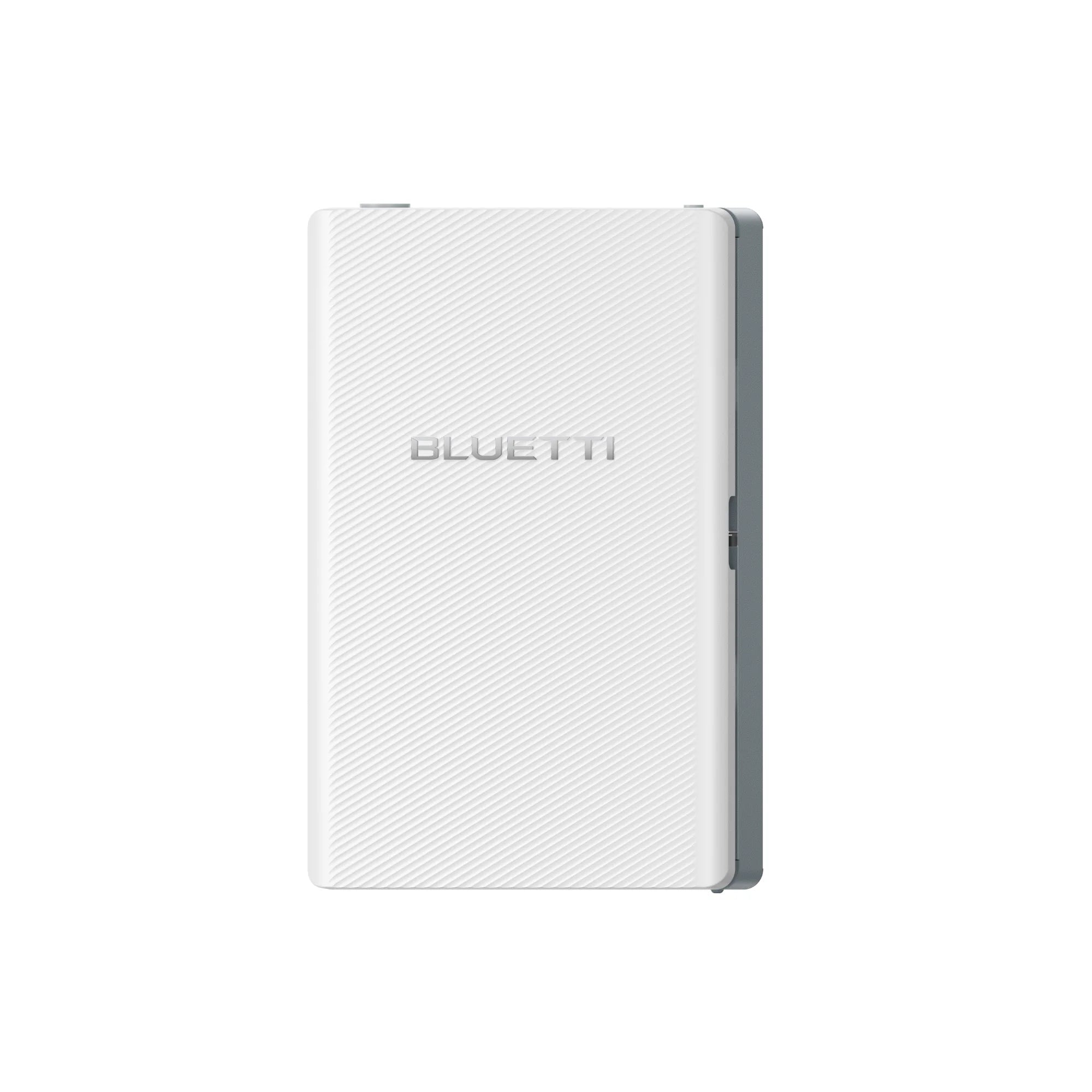

AT1 Smart Distribution Panel

General

Operating Temperature

-4°F to 122°F

Communication

General: Bluetooth/Wi-Fi/Ethernet/4G; EV: RS485

Protection Grade

NEMA 3R

Warranty

10 years

Dimensions

21.7 × 6.4 × 31.5 in

Net Weight

56.44 lbs

Compatibility

EnergyPro 6K/EnergyPro 13K/Apex 300

Electrical

Coupling

AC-Coupling

Split Phase

L1/L2/N/G

Current Rating

200 A

Rated Voltage

120 V/240 V

Rated Frequency

60 Hz

UPS Time

＜20 ms

Grid/Backup Current

160 A Continuous (200 A Max.)

ESS Current

2 × 80 A Continuous (2 × 100 A Max.)

Generator Current

64 A Continuous (80 A Max.)

Solar Current (Microinverters)

64 A Continuous (80 A Max.)

Smart-Load Current

64 A Continuous (80 A Max.)



Essential Loads
