an automotive diagnostic tool featuring an engine diagnostic code reader compatible with OBDII and JOBD standards, supporting 12 languages

Highlights

Shenzhen, China (OBD): Any purchase of 2 or more goods retail prices enjoy a 5% discount. US, 7-14 business days for delivery. The basic retail price of US District 2-5 includes postage.

Area 6- $3 to the base retail price; Zone 7- $5 more postage to the base retail price; Zone 8- $7 more postage to the base retail price; Area 9- $9 on base retail price.

Manufacturer direct sales: support bulk order negotiation and delivery methods. Support e-commerce one generation hair.

Specification

Brand:PLSTPFT

Details

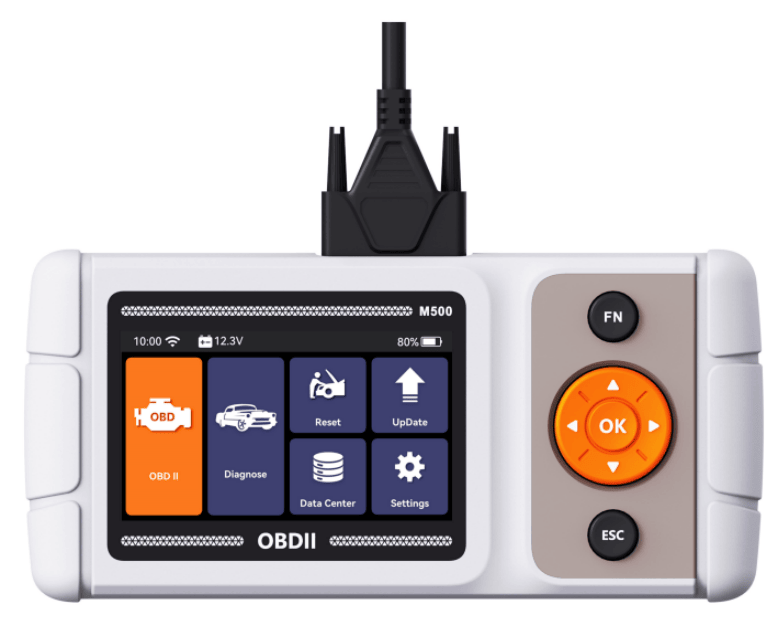

PSM500 an automotive diagnostic tool featuring an engine diagnostic code reader compatible with OBDII and JOBD standards, supporting 12 languages. It enables vehicle fault monitoring and testing, engine fault troubleshooting, and is designed for gasoline-powered vehicles. Sold directly by the manufacturer with automotive-grade quality, it offers excellent value for money.

technical parameter
Main control chip: PIC18F25K80
Operating voltage: DC 9V~16V
Working current: 224 mA to 336 mA
Operating environment: -20 to 60°C
Storage temperature: -20 to 60°C

Product Features

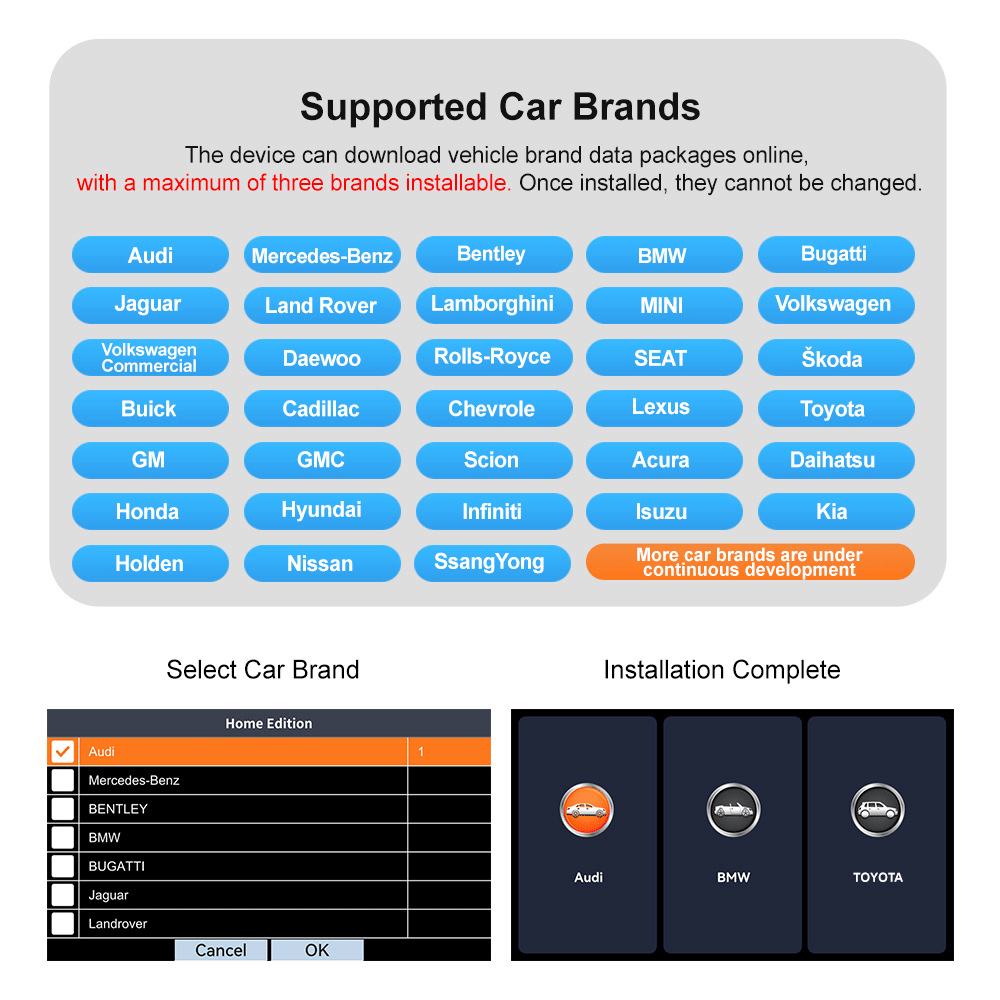

●Private Vehicle Agreement (choose 3 vehicle models)
●Four systems: engine, transmission, ABS, and SRS
● Network upgrade with one-click feedback
● Set the maintenance light to zero
● Automotive Engine Fault Diagnosis
● Auto engine fault clearance
● Automotive Data Stream
● Fault frozen frame
● Vehicle Monitoring Test (Mode 6)
● Evaporation system leak test (Mode 8)
● Oxygen sensor testing
● Fault Code Inquiry
● I/M ready state
● Vehicle Information
● Cloud Printing
● Battery voltage detection
● Version Upgrade
Supported languages: English, German, French, Spanish, Italian, Russian, Polish, Portuguese, Chinese, Japanese, and Korean
Product Certification: CE, FCC, ROHS, UKCA

Support Protocol
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Keywords
Engine fault detector, OBD Bluetooth code reader card, battery tester, automotive diagnostic code reader and scanning tool, ELM327 OBD interface, motorcycle/yacht battery diagnostic instrument, motorcycle battery repair charger, rapid fault code clearance, I/M status detection, vehicle circuit detector, circuit analyzer, intelligent diagnostic system, 12V universal battery diagnostic instrument, multifunctional battery diagnostic instrument, multimeter tester, engine fault data stream code reader card, electrical tester and test leads, emission analyzer, fuel pressure tester, gas analyzer, ignition tester, laboratory oscilloscope, mechanical tester, multimeter and analyzer, pressure and vacuum tester, software, thermometer, timer light, airbag scanning tool and simulator
Motorcycle tire pressure sensor, Bluetooth tire pressure monitor, automotive tire pressure monitor, tire abnormality alarm, air compressor and inflator, fender and splash guard, tire maintenance tools, tire cover, tire pressure gauge, tire pressure monitoring system, tire monitoring sensor, tire repair tools, wheel accessories, tire components, tire and wheel repair services, digital vehicle tire pressure gauge, tire pressure detection tools for cars, buses, trucks, tractors, bicycles, and motorcycles

Packaging Information
Product dimensions: 215*99*29.2 mm
Packaging dimensions: 260*133*58 mm
Net weight of the product: 450g
Gross weight of the product: 650g
Packaging specifications: 55*31.5*30 cm
Number of pieces per box: 20 pieces
Brutto weight on packing: 13.0 kg
