BLUETTI Charger 1 Alternator Charger

• Wide Compatibility: Works with all BLUETTI power stations and most brands on the market.
• High-Speed Charging: Delivers Max. 560W of power—6 times faster than traditional car cigarette lighter chargers.
• Enhanced Cooling: Active fan cooling for optimal performance and extended service life.

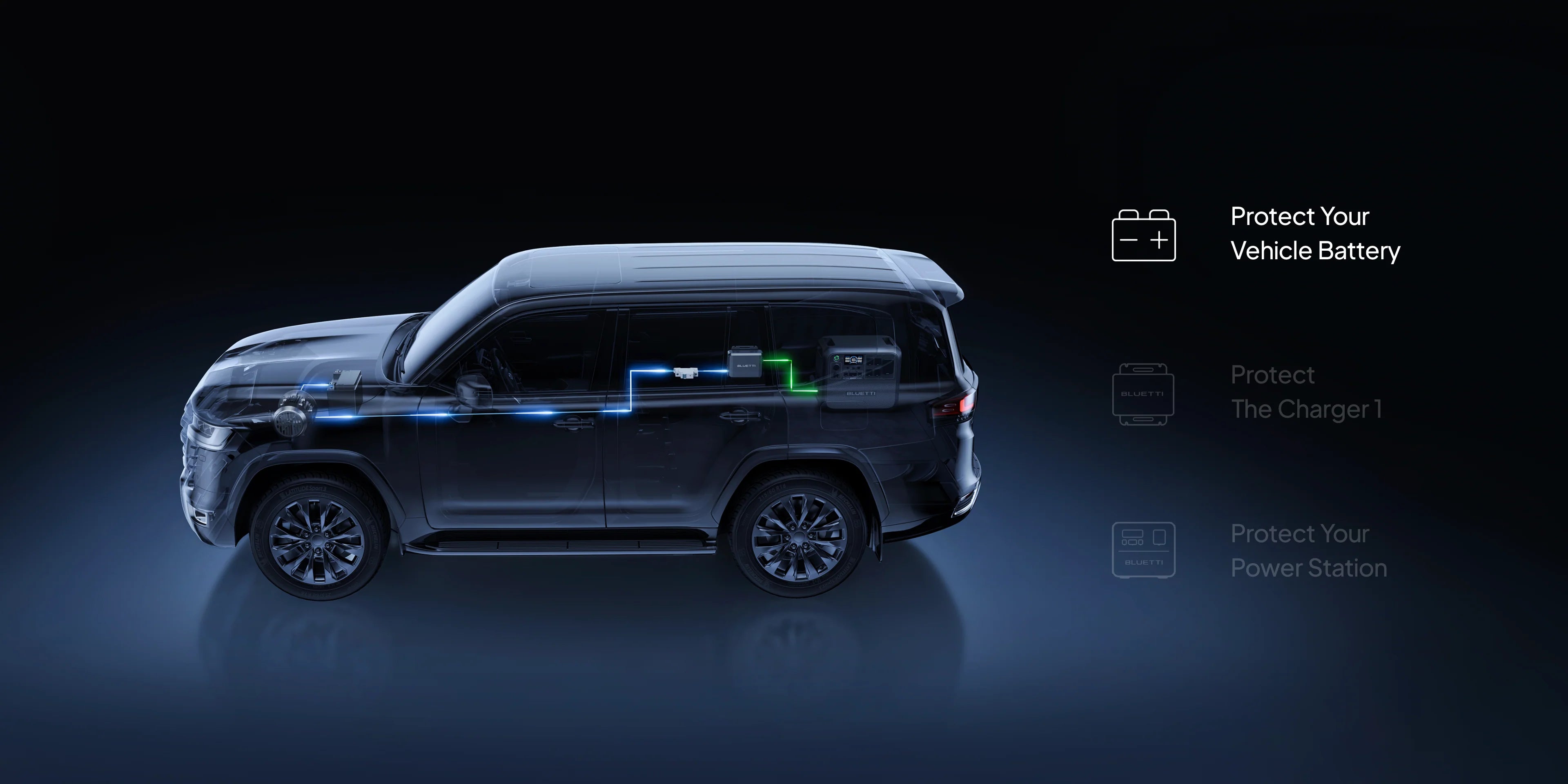

• Safety Features: Protect your vehicle battery and power station from short circuit, reverse connection, under-voltage, over-temperature, etc.
• Smart Protection: Automatic turn on/off functions prevent your vehicle battery from draining.
• App Control: Allows you to adjust output voltage and monitor car battery status in real-time.
• Easy Installation: Quick to connect and setup with a few simple steps.
• Peace of Mind: Backed by a 2-year warranty for reliable performance.

  Tech Specs

  Charger 1



  OUTPUT

  Default Voltage: 27V

  Voltage Range (with 12V battery) 15.0V to 56.0V (adjustable via app)

  Voltage Range (with 24V battery): 27.0V to 56.0V (adjustable via app)

  Current 10A

  Power: 560W

  INPUT

  Input Voltage: 12V - 14V / 22.5V - 28V

  Input Amperage: 50A - 12V / 25A - 24V

  GENERAL

  Product Function: Increase output voltage (To charge power station)

  Compatibility: All BLUETTI power stations & 95% of other models on the market.

  Protections: Short circuit/anti-reverse/under-voltage/over-temperature

  Cooling fan cooling

  Surge Protection 60A Circuit Breaker (Optional)

  Operating Temperature: -20°C to 60°C / -4°F to 140°F

  Protection Grade IP20

  Noise: 50 dB Max.

  Weight approx. 1.2kg / 2.645 lbs

  Dimensions (L × W × H): 145 mm × 110mm × 60mm / 5.7in × 4.33in × 2.36in

  Warranty: 2 Years

  Connectivity: Bluetooth

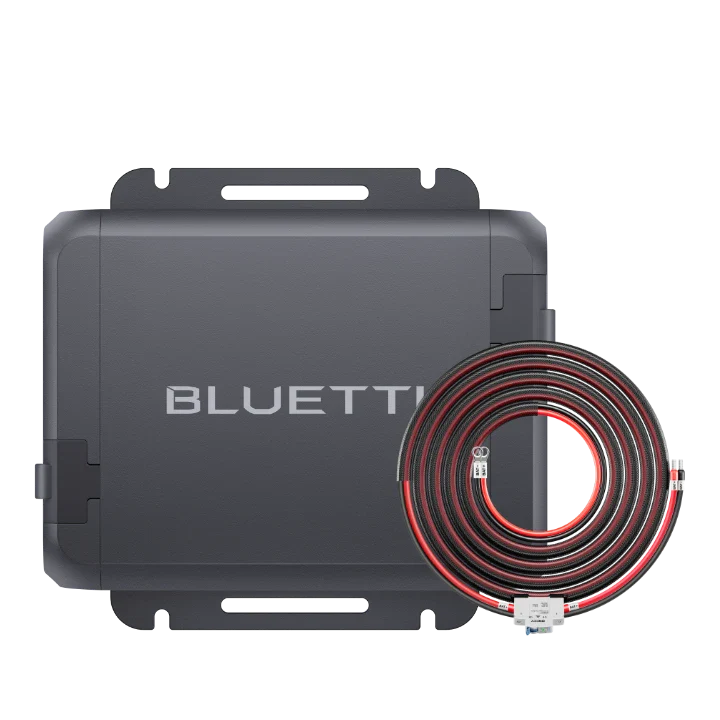

  IN THE BOX

  Charger 1 DC-DC Charger

  x 1



  Hex Socket Screw

  x 4



  Self-tapping Screw

  x 6



  Hex Socket Wrench

  x 1



  DC Input Cable

  x 1



  MC4 Output Cable

  x 1



  User Manual

  x 1
